Shimadzu
UV-Vis Spectrometer
Research-grade optical analysis from UV to near-IR.
Genuine Product
1 Year Warranty
Expert Support
Hover to zoom
Overview

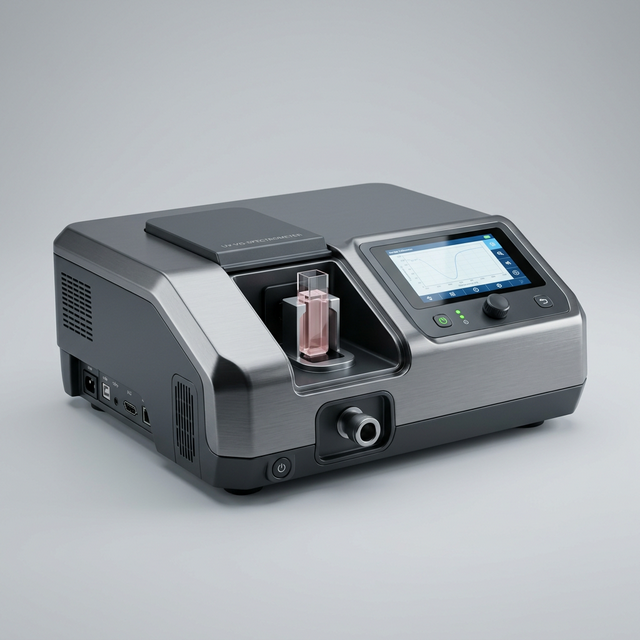

The double-beam UV-Vis spectrophotometer delivers high-resolution optical measurements across the 190–1100nm wavelength range. Featuring low stray light performance, automatic wavelength calibration, and cuvette/integrating sphere accessories, it supports quantitative analysis, kinetics studies, and thin-film characterization with research-grade accuracy.
Key Capabilities
Double-beam optical design
Wavelength range 190 – 1100 nm
Spectral bandwidth 0.1 – 5 nm
Automatic wavelength calibration
Kinetics and time-scan modes
Optional integrating sphere accessory
Applications
Chemical AnalysisProtein QuantificationThin Film CharacterizationEnvironmental MonitoringPharmaceutical QCMaterials Research
Technical Specifications
Wavelength Range
190 – 1100 nm
Bandwidth
0.1 – 5 nm
Photometric Range
-4 to 4 Abs
Stray Light
< 0.02% T
Scan Speed
Up to 3200 nm/min
Connectivity
USB 3.0, Ethernet
Warranty
1 Year Limited
